Discussion 7: String Representation, Efficiency, Linked Lists, Mutable Trees

This is an online worksheet that you can work on during discussions and tutorials. Your work is not graded and you do not need to submit anything.

Discussion 7 Vitamin

To encourage everyone to watch or attend discussion orientation, we have created small discussion vitamins. If you complete 5 of the next 6 vitamins, you can earn one point of extra credit added to your final grade in the course. Please answer all of the questions in this form by Thursday at 11:59 PM.

Representation - Repr and Str

There are two main ways to produce the "string" of an object in Python: str() and repr(). While the two are similar, they are used for different purposes. str() is used to describe the object to the end user in a "Human-readable" form, while repr() can be thought of as a "Computer-readable" form mainly used for debugging and development.

When we define a class in Python, str() and repr() are both built-in methods for the class. We can call an object's str() and repr() by using their respective methods. These methods can be invoked by calling repr(obj) or str(obj) rather than the dot notation format obj.__repr__() or obj.__str__(). In addition, the print() function calls the str() method of the object, while simply calling the object in interactive mode calls the repr() method.

Here's an example:

class Rational:
    def __init__(self, numerator, denominator):
        self.numerator = numerator
        self.denominator = denominator
    def __str__(self):
        return f'{self.numerator}/{self.denominator}'
    def __repr__(self):
        return f'Rational({self.numerator},{self.denominator})'

>>> a = Rational(1, 2)
>>> str(a)
'1/2'
>>> repr(a)
'Rational(1,2)'
>>> print(a)
1/2
>>> a
Rational(1,2)

Questions

Q1: Repr-esentation WWPD

What would Python display?
class A:
    def __init__(self, x):
        self.x = x
    def __repr__(self):
         return self.x
    def __str__(self):
         return self.x * 2

class B:
    def __init__(self):
         print('boo!')
         self.a = []
    def add_a(self, a):
         self.a.append(a)
    def __repr__(self):
         print(len(self.a))
         ret = ''
         for a in self.a:
             ret += str(a)
         return ret
>>> A('one')
one
>>> print(A('one'))
oneone
>>> repr(A('two'))
'two'
>>> b = B()
boo!
>>> b.add_a(A('a'))
>>> b.add_a(A('b'))
>>> b
2
aabb

Linked Lists

There are many different implementations of sequences in Python. Today, we'll explore the linked list implementation.

A linked list is either an empty linked list, or a Link object containing a first value and the rest of the linked list.

To check if a linked list is an empty linked list, compare it against the class attribute Link.empty:

if link is Link.empty:
    print('This linked list is empty!')
else:
    print('This linked list is not empty!')

Check out the implementation of the Link class below:

class Link:
    empty = ()
    def __init__(self, first, rest=empty):
        assert rest is Link.empty or isinstance(rest, Link)
        self.first = first
        self.rest = rest

    def __repr__(self):
        if self.rest:
            rest_str = ', ' + repr(self.rest)
        else:
            rest_str = ''
        return 'Link({0}{1})'.format(repr(self.first), rest_str)

    def __str__(self):
        string = '<'
        while self.rest is not Link.empty:
            string += str(self.first) + ' '
            self = self.rest
        return string + str(self.first) + '>'

Questions

Q2: Sum Nums

Write a function that takes in a a linked list and returns the sum of all its elements. You may assume all elements in s are integers. Try to implement this recursively!

Your Answer
Run in 61A Code
Solution
def sum_nums(s):
    """
    >>> a = Link(1, Link(6, Link(7)))
    >>> sum_nums(a)
    14
    """

    if s == Link.empty:
        return 0
    return s.first + sum_nums(s.rest)

Q3: (Tutorial) Inheritance Review: That's a Constructor, __init__?

Let's say we want to create a class Monarch that inherits from another class, Butterfly. We've partially written an __init__ method for Monarch. For each of the following options, state whether it would correctly complete the method so that every instance of Monarch has all of the instance attributes of a Butterfly instance? You may assume that a monarch butterfly has the default value of 2 wings.

class Butterfly():
    def __init__(self, wings=2):
        self.wings = wings

class Monarch(Butterfly):
    def __init__(self):
        _________________________________________
        self.colors = ['orange', 'black', 'white']
super.__init__()
No, because the super function must be called with parentheses.
super().__init__()
Yes.
Butterfly.__init__()
No, because we must explicitly pass in self as an argument.
Butterfly.__init__(self)
Yes.

Some butterflies like the Owl Butterfly have adaptations that allow them to mimic other animals with their wing patterns. Let's write a class for these MimicButterflies. In addition to all of the instance variables of a regular Butterfly instance, these should also have an instance variable mimic_animal describing the name of the animal they mimic. Fill in the blanks in the lines below to create this class.

class MimicButterfly(______________):
    def __init__(self, mimic_animal):
        _______________.__init__()
        ______________ = mimic_animal

What expression completes the first blank?

Butterfly

What expression completes the second blank?

super()

What expression completes the third blank?

self.mimic_animal

Q4: (Tutorial) Warmup: The Hy-rules of Linked Lists

In this question, we are given the following Linked List:

ganondorf = Link('zelda', Link('young link', Link('sheik', Link.empty)))

What expression would give us the value 'sheik' from this Linked List?

ganondorf.rest.rest.first

What is the value of ganondorf.rest.first?

'young link'

Q5: (Tutorial) Multiply Lnks

Write a function that takes in a Python list of linked lists and multiplies them element-wise. It should return a new linked list.

If not all of the Link objects are of equal length, return a linked list whose length is that of the shortest linked list given. You may assume the Link objects are shallow linked lists, and that lst_of_lnks contains at least one linked list.

Your Answer
Run in 61A Code
Solution
def multiply_lnks(lst_of_lnks):
    """
    >>> a = Link(2, Link(3, Link(5)))
    >>> b = Link(6, Link(4, Link(2)))
    >>> c = Link(4, Link(1, Link(0, Link(2))))
    >>> p = multiply_lnks([a, b, c])
    >>> p.first
    48
    >>> p.rest.first
    12
    >>> p.rest.rest.rest is Link.empty
    True
    """
    # Implementation Note: you might not need all lines in this skeleton code

    product = 1
    for lnk in lst_of_lnks:
        if lnk is Link.empty:
            return Link.empty
        product *= lnk.first
    lst_of_lnks_rests = [lnk.rest for lnk in lst_of_lnks]
    return Link(product, multiply_lnks(lst_of_lnks_rests))
    # For an extra challenge, try writing out an iterative approach as well below!

    # Alternate iterative approach
    import operator
    from functools import reduce
    def prod(factors):
         return reduce(operator.mul, factors, 1)

    head = Link.empty
    tail = head
    while Link.empty not in lst_of_lnks:
        all_prod = prod([l.first for l in lst_of_lnks])
        if head is Link.empty:
            head = Link(all_prod)
            tail = head
        else:
            tail.rest = Link(all_prod)
            tail = tail.rest
        lst_of_lnks = [l.rest for l in lst_of_lnks]
    return head
For our base case, if we detect that any of the lists in the list of Links is empty, we can return the empty linked list as we're not going to multiply anything.

Otherwise, we compute the product of all the firsts in our list of Links. Then, the subproblem we use here is the rest of all the linked lists in our list of Links. Remember that the result of calling multiply_lnks will be a linked list! We'll use the product we've built so far as the first item in the returned Link, and then the result of the recursive call as the rest of that Link.

The iterative solution is a bit more involved than the recursive solution. Instead of building the list backwards as in the recursive solution (because of the order that the recursive calls result in, the last item in our list will be finished first), we'll build the resulting linked list as we go along.

We usehead and tail to track the front and end of the new linked list we're creating. Our stopping condition for the loop is if any of the Links in our list of Links runs out of items.

Finally, there's some special handling for the first item. We need to update both head and tail in that case. Otherwise, we just append to the end of our list using tail, and update tail.

Q6: (Tutorial) Flip Two

Write a recursive function flip_two that takes as input a linked list s and mutates s so that every pair is flipped.

Your Answer
Run in 61A Code
Solution
def flip_two(s):
    """
    >>> one_lnk = Link(1)
    >>> flip_two(one_lnk)
    >>> one_lnk
    Link(1)
    >>> lnk = Link(1, Link(2, Link(3, Link(4, Link(5)))))
    >>> flip_two(lnk)
    >>> lnk
    Link(2, Link(1, Link(4, Link(3, Link(5)))))
    """

    # Recursive solution:
    if s is Link.empty or s.rest is Link.empty:
        return
    s.first, s.rest.first = s.rest.first, s.first
    flip_two(s.rest.rest)

    # For an extra challenge, try writing out an iterative approach as well below!

    return # separating recursive and iterative implementations

    # Iterative approach
    while s is not Link.empty and s.rest is not Link.empty:
        s.first, s.rest.first = s.rest.first, s.first
        s = s.rest.rest
If there's only a single item (or no item) to flip, then we're done.

Otherwise, we swap the contents of the first and second items in the list. Since we've handled the first two items, we then need to recurse on

Although the question explicitly asks for a recursive solution, there is also a fairly similar iterative solution (see python solution).

We will advance s until we see there are no more items or there is only one more Link object to process. Processing each Link involves swapping the contents of the first and second items in the list (same as the recursive solution).

Trees

Recall the tree abstract data type: a tree is defined as having a label and some branches. Previously, we implemented the tree abstraction using Python lists. Let's look at another implementation using objects instead:

class Tree:
    def __init__(self, label, branches=[]):
        for b in branches:
            assert isinstance(b, Tree)
        self.label = label
        self.branches = branches

    def is_leaf(self):
        return not self.branches

With this implementation, we can mutate a tree using attribute assignment, which wasn't possible in the previous implementation using lists. That's why we sometimes call these objects "mutable trees."

>>> t = Tree(3, [Tree(4), Tree(5)])
>>> t.label = 5
>>> t.label
5

Questions

Q7: Make Even

Define a function make_even which takes in a tree t whose values are integers, and mutates the tree such that all the odd integers are increased by 1 and all the even integers remain the same. Your Answer
Run in 61A Code
Solution
def make_even(t):
    """
    >>> t = Tree(1, [Tree(2, [Tree(3)]), Tree(4), Tree(5)])
    >>> make_even(t)
    >>> t.label
    2
    >>> t.branches[0].branches[0].label
    4
    """

    if t.label % 2 != 0:
        t.label += 1
    for branch in t.branches:
        make_even(branch)
    return
    # Alternate Solution

    t.label += t.label % 2
    for branch in t.branches:
        make_even(branch)
    return

Q8: (Tutorial) Find Paths

Hint: This question is similar to find_paths on Discussion 05.

Define the procedure find_paths that, given a Tree t and an entry, returns a list of lists containing the nodes along each path from the root of t to entry. You may return the paths in any order.

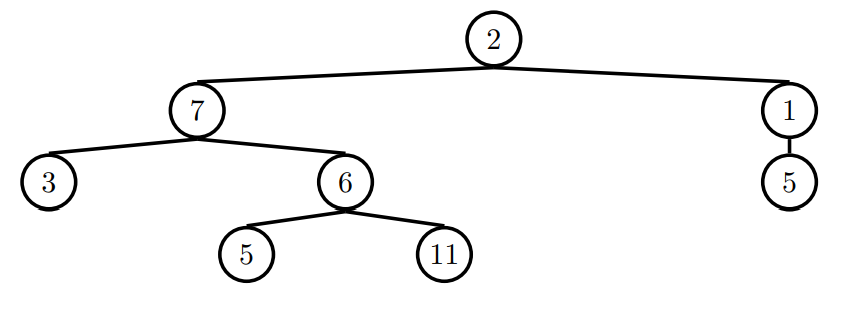

For instance, for the following tree tree_ex, find_paths should behave as specified in the function doctests. Example Tree

Your Answer
Run in 61A Code
Solution
def find_paths(t, entry):
    """
    >>> tree_ex = Tree(2, [Tree(7, [Tree(3), Tree(6, [Tree(5), Tree(11)])]), Tree(1, [Tree(5)])])
    >>> find_paths(tree_ex, 5)
    [[2, 7, 6, 5], [2, 1, 5]]
    >>> find_paths(tree_ex, 12)
    []
    """

    paths = []

    if t.label == entry:
        paths.append([t.label])
    for b in t.branches:
        for path in find_paths(b, entry):
            paths.append([t.label] + path)
    return paths

Efficiency

When we talk about the efficiency of a function, we are often interested in the following: as the size of the input grows, how does the runtime of the function change? And what do we mean by runtime?

  • square(1) requires one primitive operation: multiplication. square(100) also requires one. No matter what input n we pass into square, it always takes a constant number of operations (1). In other words, this function has a runtime complexity of Θ(1). Check out the table below:
input function call return value operations
1 square(1) 1*1 1
2 square(2) 2*2 1
... ... ... ...
100 square(100) 100*100 1
... ... ... ...
n square(n) n*n 1
  • factorial(1) requires one multiplication, but factorial(100) requires 100 multiplications. As we increase the input size of n, the runtime (number of operations) increases linearly proportional to the input. In other words, this function has a runtime complexity of Θ(n). Check out the table below:
input function call return value operations
1 factorial(1) 1*1 1
2 factorial(2) 2*1*1 2
... ... ... ...
100 factorial(100) 100*99*...*1*1 100
... ... ... ...
n factorial(n) n*(n-1)*...*1*1 n

Questions

Q9: The First Order...of Growth

What is the efficiency of rey?

def rey(finn):
    poe = 0
    while finn >= 2:
        poe += finn
        finn = finn / 2
    return
Logarithmic, because our while loop iterates at most log(finn) times, due to finn being halved in every iteration. This is commonly known as Θ(log(finn)) runtime. Another way of looking at this if you duplicate the input, we only add a single iteration to the time, which also indicates logarithmic.

What is the efficiency of mod_7?

def mod_7(n):
    if n % 7 == 0:
        return 0
    else:
        return 1 + mod_7(n - 1)
Constant, since at worst it will require 6 recursive calls to reach the base case. This is commonly known as a Θ(1) runtime.
